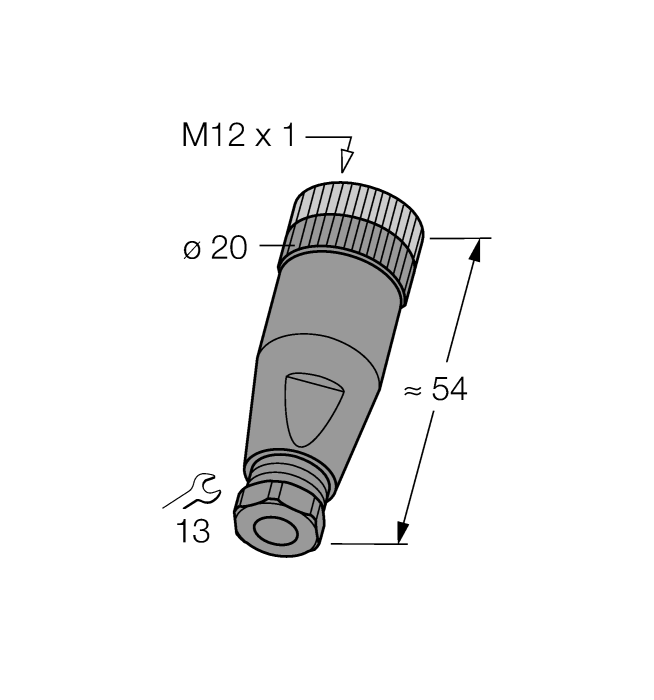

B8151-0連接器

TURCK圖爾克B8151-0連接器，現場可接線母頭接插件, M12 x 1, 直角，針腳數量5。訂購請咨詢上海銳譽。

Round connector M12 x 1
Female, straight, customizable
B8151-0

A碼
塑料耦合螺紋
UL認證
Screw-clamp terminal
5-pin
PG7 screw-in thread

Cable bushing 4.0 … 6.0 mm

型號B8151-0
貨號6904601
A側接插件現場可接線母頭接插件, M12 x 1, 直角
針腳數量5
Contacts 金屬, CuZn, 鍍金
Contact carriers 塑料, PA, 黑
Grip 塑料, PA, 黑
Coupling nut/screw 塑料, PA, 黑
Seal 塑料, FKM/FPM
Screw-in thread seal 塑料, FKM
防護等級IP67, （擰在一起）
External diameter of the cable 4… 6mm
導線橫截面/夾緊能力max.
0.75
mm2
Screw-in thread PG 7
Connection mode 螺釘式端子連接
Mechanical lifespan > 50 mating cycles
Pollution degree 3
額定電壓 [Umax] 125 V
Insulation resistance ? 108 ò
Ampacity 4 A
Forward resistance e 8 mò
Ambient temperature Connector -40…+85°C
